Volcano Diagram
Free printable volcano diagram — a labeled cross-section showing the magma chamber, vent, crater, lava, ash cloud and more. Download a high-resolution PDF or PNG for Letter paper.
Part of the free Inside the Earth and Volcanoes teaching pack for grades 4 to 6: 26 lesson slides and 11 printables with answer keys, free by email.
Teaching ideas for Inside the Earth and Volcanoes
Pick the ideas that suit your class, then follow the plan or use the sheets in any order.
- Build a clay Earth. Roll a small ball of clay for the inner core. Wrap it in three more colors for the outer core, mantle and crust. Pull a string through it to see the layers.
- Make a foam eruption. Stand a plastic cup of baking soda in a mound of sand. Pour in vinegar with a few drops of red food coloring. Foam rises and runs down the sides like lava.
- Model a volcano. Students shape half a volcano from clay, flat side forward. They mark the magma chamber, vent, side vent and crater, then check against the labeled diagram.
A plan for the week
| Day 1 | Open with one of the ideas above. Teach the lesson with the slides while students fill in the guided notes. Then students label the blank Earth diagram and trace a drill to the center on “Read the Earth Diagram”. | Lesson slides (PowerPoint) (in the pack) Inside the Earth and Volcanoes Guided Notes (in the pack) Layers of the Earth Diagram Blank Layers of the Earth Read the Earth Diagram (in the pack) |
| Day 2 | Teach the seven parts of a volcano from the labeled diagram, then students label the blank one. | Volcano Diagram Blank Volcano |
| Day 3 | Students read the volcano picture on “Read the Volcano Diagram”: draw how magma travels up and tell lava from ash. Then read “Under Your Feet” and answer the questions. | Read the Volcano Diagram (in the pack) Under Your Feet (in the pack) |
| Day 4 | Students put the six steps of an eruption in order and answer the questions. | How a Volcano Erupts (in the pack) |
| Day 5 | Review with the crossword, then give the quiz. | Inside the Earth and Volcanoes Crossword (in the pack) Inside the Earth and Volcanoes Quiz (in the pack) |
The sheets marked “in the pack” are in the free Inside the Earth and Volcanoes teaching pack below, sent by email.
NGSS standards
- Supports 4-ESS2-2: Analyze and interpret data from maps to describe patterns of Earth's features.
- Supports MS-ESS2-2: Construct an explanation based on evidence for how geoscience processes have changed Earth's surface at varying time and spatial scales.
Inside the Earth and Volcanoes teaching pack
Teaching the layers of the Earth and volcanoes? This free pack has ready-made lesson slides and 11 printables that cover the whole topic, in teaching order, with every answer key.
OnlineAlso free as an online lesson for Google Classroom: every part on screen for students, plus a self-grading Google Forms quiz. Try it
You get the whole pack (PDF, 22 pages), the lesson slides (PowerPoint and PDF) and the guided notes. Now and then we will email you when a new pack is ready. Unsubscribe any time.



Teach Inside the Earth and Volcanoes with 26 ready-made slides
Open the PowerPoint and teach: an opening question, the parts one at a time on the diagram, quick checks and an exit question. Students fill in the guided notes sheet as you go.
Every slide comes with teacher notes: what to say, what to ask, and sample answers.
The slides (PowerPoint and a PDF copy) and the guided notes sheet come with the free pack, sent by email.
What is in the pack, in teaching order
Free by email
1. TeachLesson Slides26 slides to present, with your notes for each one.Free by email
Free by email
1. TeachInside the Earth and Volcanoes Guided NotesStudents fill in the blanks as you present. With answer key.Free by email
Free by email
3. ReasonRead the Earth DiagramRead the Earth picture: trace a drill to the center, tell which layer is liquid, and work out which layers are the same.Free by email
Free by email
3. ReasonRead the Volcano DiagramRead the volcano picture: draw how magma travels up, work out what happens if the pipe is blocked, and tell ash from lava.Free by email
Free by email
4. ReadUnder Your FeetA one-page text on the layers of the Earth and how a volcano erupts, with eight questions.Free by email
Free by email
5. OrderHow a Volcano EruptsPut six steps in order to follow molten rock from deep underground to the side of a volcano, then answer three questions.Free by email
Free by email
6. ReviewInside the Earth and Volcanoes CrosswordFourteen Earth and volcano words with clues and a word bank.Free by email
Free by email
7. CheckInside the Earth and Volcanoes QuizLabel five parts of a volcano, six multiple choice and two written answers. Scored out of 13.Free by email
Inside the Earth and Volcanoes worksheets, crossword and quiz
The Inside the Earth and Volcanoes teaching pack is 26 lesson slides (PowerPoint and PDF) and 11 printables with answer keys for grades 4 to 6, in the order you would teach them: the guided notes for the lesson slides, 4 diagram sheets, then “Read the Earth Diagram” (a worksheet), “Read the Volcano Diagram” (a worksheet), “Under Your Feet” (a reading passage), “How a Volcano Erupts” (an ordering worksheet), a vocabulary crossword and a quiz.
The sheets are in a suggested teaching order: teach the lesson, have students label the blank diagrams, then work through the practice sheets and finish with the quiz. Use them all over a week or pick the ones you need. The answer keys are together at the back.
The diagrams download free on this page. The whole pack, with every sheet, the lesson slides and every answer key, is free by email.
The parts of a volcano

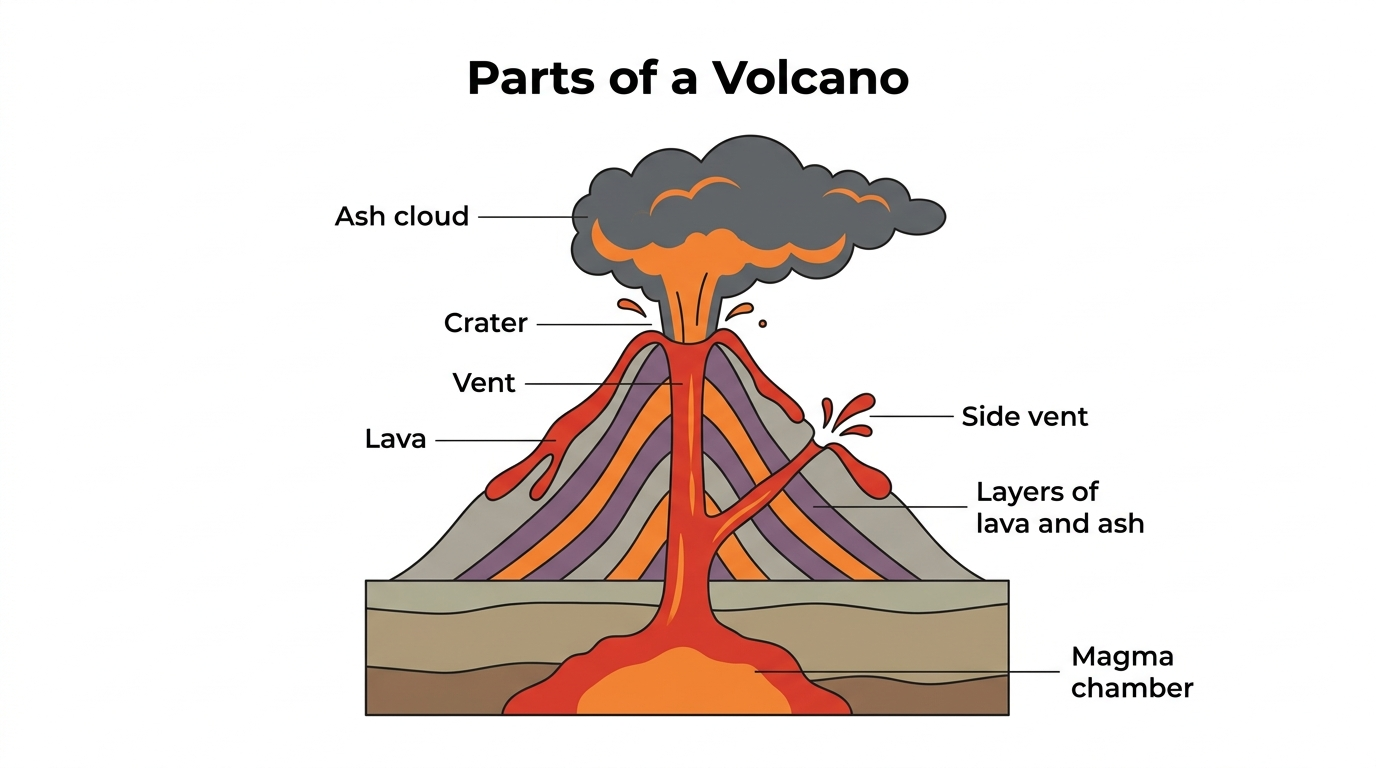

A volcano is an opening in the Earth's surface where magma, ash and gases escape. Here is what happens at each labeled part of the diagram:
| Part | What it does | Why it matters |
|---|---|---|
| Ash cloud | A cloud of ash, gas and rock blasted into the air during an eruption. | A single large eruption can blast so much ash into the upper atmosphere that it blocks sunlight and lowers temperatures across the whole planet — the 1991 eruption of Mount Pinatubo cooled Earth by about 0.5°C for two years. |
| Crater | The bowl-shaped opening at the top of the volcano. | The crater acts as the volcano's exit point, and its size tells scientists a lot about how violent past eruptions were — some craters are wide enough to hold entire towns. |
| Vent | The central pipe that carries magma up to the surface. | Without a vent, magma would have nowhere to go and pressure would keep building underground until it found a much more explosive way out — making the vent a kind of pressure-release valve for the planet. |
| Lava | Magma that has reached the surface and flows out. | As lava cools and hardens, it creates new land — the entire Hawaiian island chain was built this way, one layer at a time, rising up from the ocean floor. |
| Side vent | A smaller opening on the side of the volcano. | Side vents are especially dangerous because eruptions from them catch people off guard — when Mount St. Helens erupted in 1980, the deadliest blast came out of its side, not the top. |
| Layers of lava and ash | Built up over many eruptions to form the volcano's cone. | |
| Magma chamber | The pool of molten rock deep underground. | The magma chamber is the engine that drives everything above it — when it empties quickly during a massive eruption, the ground above can collapse inward, forming a giant crater called a caldera that can be miles wide. |
How to print
Choose Download PDF for a ready-to-print file that fits US Letter paper (8.5 × 11") in landscape, or Download PNG for the high-resolution image.
Frequently asked questions
What are the parts of a volcano?
The main parts are the magma chamber, the vent, the crater, the lava, the side vent, the layers of lava and ash, and the ash cloud.
What is the difference between magma and lava?
It is the same molten rock — it is called magma while underground and lava once it reaches the surface.
What paper size should I print this on?
The diagram is sized for standard US Letter paper (8.5 × 11") in landscape orientation. Use "Download PDF" for a print-ready file that fits the page automatically.
Are there Inside the Earth and Volcanoes worksheets to go with the diagram?
Yes. The Inside the Earth and Volcanoes teaching pack, for grades 4 to 6, has 26 lesson slides and 11 printables with answer keys: the guided notes for the lesson slides, 4 diagram sheets, then “Read the Earth Diagram” (a worksheet), “Read the Volcano Diagram” (a worksheet), “Under Your Feet” (a reading passage), “How a Volcano Erupts” (an ordering worksheet), a vocabulary crossword and a quiz. The diagrams download free on this page. The whole pack, with every sheet, the lesson slides and every answer key, is free by email.
Related: Most volcanoes sit along the edges of tectonic plates. See where on our tectonic plate map.
