Respiratory System Diagram

Free printable respiratory system diagram — a labeled illustration of the nasal cavity, trachea, bronchi, lungs, diaphragm and more. Download a high-resolution PDF or PNG for Letter paper.

Part of the Respiratory System teaching pack for grades 4 to 6: 24 lesson slides and 8 printables with answer keys. The diagram and the blank one to label are free.

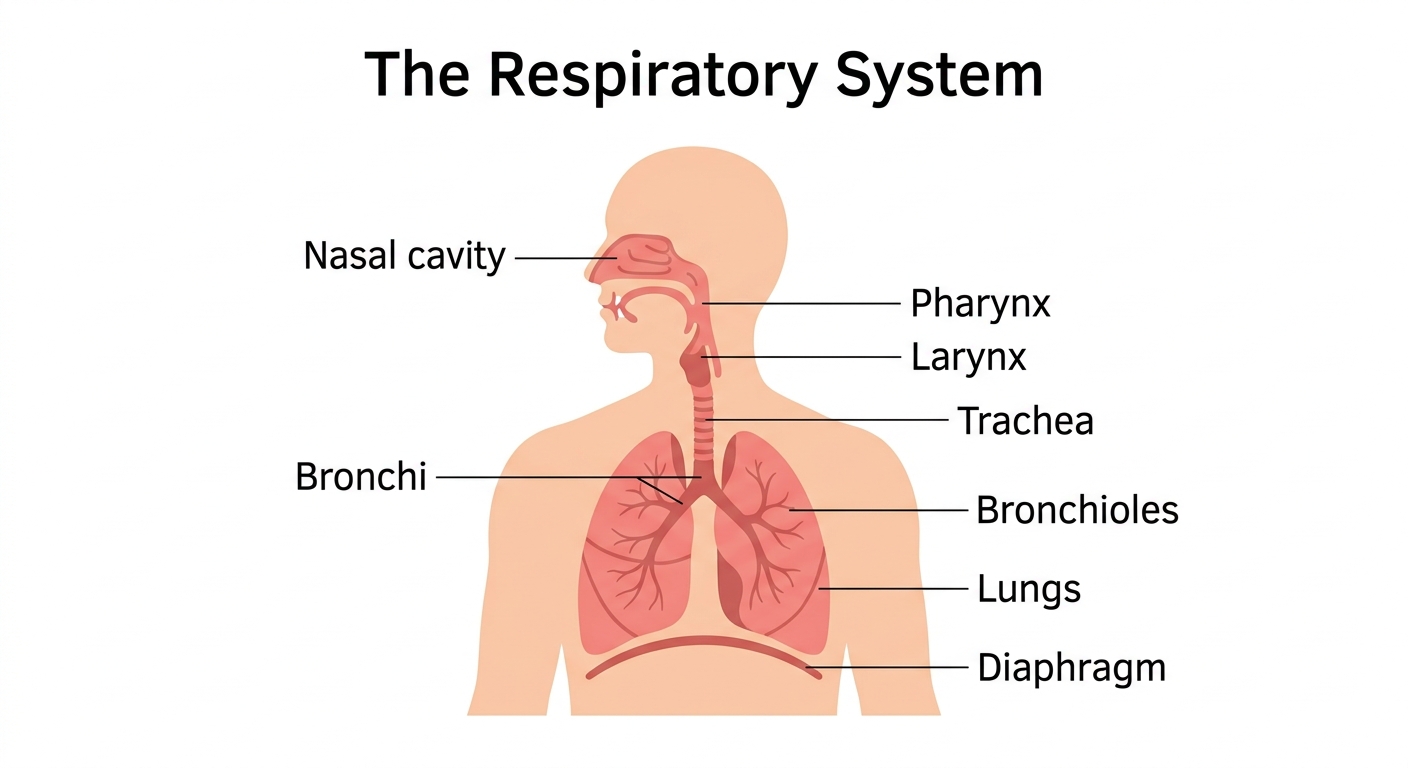

Labeled human respiratory system diagram showing nose, trachea, bronchi, lungs, and diaphragm

Labeled diagram

Download PDF or download the PNG image
Blank respiratory system diagram to label, with a word bank

Blank diagram to label

Download PDF 8 blanks, a word bank, and the answer key on page 2
Respiratory System diagram labeled with the function of each part

Labeled with functions

Download PDF A short line under each part saying what it does

Teaching ideas for Respiratory System

Pick the ideas that suit your class, then follow the plan or use the sheets in any order.

  • Feel a breath. Students rest their hands on their ribs and take a slow, deep breath. They feel the chest get bigger as the lungs fill with air.
  • Feel your voice box. Students rest their fingers lightly on the front of the throat and hum. The buzz they feel is the vocal cords in the larynx.
  • Act out a breath. Students line up as the nasal cavity, pharynx, larynx, trachea, bronchi, bronchioles and lungs. Pass a ball down the line as the air, then back out.
  • Breathe after moving. Students notice their breathing while sitting, then again after jogging in place. Talk about why the body wants more oxygen when it works harder.

A plan for the week

Day 1Open with one of the ideas above. Teach the lesson with the slides while students fill in the guided notes. Then students label the blank diagram.Lesson slides (PowerPoint) (in the pack)
Respiratory System Guided Notes (in the pack)
Respiratory System Diagram
Blank Respiratory System
Day 2Students work out a breath of air’s path on “Read the Diagram”: where it is cleaned, where oxygen passes to the blood and what the diaphragm does.Read the Diagram (in the pack)
Day 3Read “How You Breathe” and answer the questions.How You Breathe (in the pack)
Day 4Put the steps of “The Path of a Breath” in order and answer the questions.The Path of a Breath (in the pack)
Day 5Review with the crossword, then give the quiz.Respiratory System Crossword (in the pack)
Respiratory System Quiz (in the pack)

The sheets marked “in the pack” are in the Respiratory System teaching pack below.

NGSS standards

  • Supports 4-LS1-1: Construct an argument that plants and animals have internal and external structures that function to support survival, growth, behavior, and reproduction.
  • Supports MS-LS1-3: Use argument supported by evidence for how the body is a system of interacting subsystems composed of groups of cells.
Respiratory System teaching pack cover
Teaching packGrades 4–6

Respiratory System teaching pack

Teaching the respiratory system? Here is a ready-to-teach lesson. 24 slides and 8 printables that cover the whole topic, from the guided notes to the quiz. Present the slides while students fill in the guided notes, then use the worksheets, crossword and quiz, with every answer key.

Free on this page: the diagram and the blank one to label, marked Download below. The whole pack is $7: 18 pages in one print-ready file, the 24 lesson slides, the practice sheets, the crossword, the quiz and every answer key.

OnlineThe pack also comes as an online lesson for Google Classroom: every part on screen for students, plus a self-grading Google Forms quiz.

One-time purchase. Instant download. Secure checkout by Stripe. Want to see a whole pack first? The Skeletal System pack is free.
Respiratory System lesson slideRespiratory System lesson slideRespiratory System lesson slideRespiratory System lesson slide
Lesson slides

Teach Respiratory System with 24 ready-made slides

Open the PowerPoint and teach: an opening question, the parts one at a time on the diagram, quick checks and an exit question. Students fill in the guided notes sheet as you go.

Every slide comes with teacher notes: what to say, what to ask, and sample answers.

The slides (PowerPoint and a PDF copy) and the guided notes sheet come with the pack.
A slide from the Respiratory System lesson in PowerPoint presenter view, with its teacher note beside it
One slide in presenter view: the class sees the slide, you see the note. Tap to see it full size.

What is in the pack, in teaching order

Respiratory System lesson slides (PowerPoint) In the pack 1. TeachLesson Slides24 slides to present, with your notes for each one.In the $7 pack
Respiratory System guided notes: printable with answer key In the pack 1. TeachRespiratory System Guided NotesStudents fill in the blanks as you present. With answer key.In the $7 pack
Respiratory System Diagram: free printableFree 1. TeachRespiratory System DiagramThe labeled diagram, 8 parts.Download free PDF
Blank Respiratory System: free printableFree 2. LabelBlank Respiratory SystemStudents label 8 parts from a word bank.Download free PDF
Read the Diagram: printable worksheet with answer key In the pack 3. ReasonRead the DiagramRead the respiratory system picture: trace a breath of air, work out what the nose does, what moves in the air sacs and what happens when the diaphragm tightens.In the $7 pack
How You Breathe: printable reading passage with answer key In the pack 4. ReadHow You BreatheA one-page text that follows a breath of air into the lungs and back out, with eight questions.In the $7 pack
The Path of a Breath: printable sequencing worksheet with answer key In the pack 5. OrderThe Path of a BreathPut seven steps of one breath in order, then answer three questions.In the $7 pack
Respiratory System Crossword: printable vocabulary crossword with answer key In the pack 6. ReviewRespiratory System CrosswordFourteen respiratory system words with clues and a word bank.In the $7 pack
Respiratory System Quiz: printable quiz with answer key In the pack 7. CheckRespiratory System QuizLabel five parts, six multiple choice and two written answers. Scored out of 13.In the $7 pack

Respiratory System worksheets, crossword and quiz

The Respiratory System teaching pack is 24 lesson slides (PowerPoint and PDF) and 8 printables with answer keys for grades 4 to 6, in the order you would teach them: the guided notes for the lesson slides, the labeled diagram and the blank one to label, then “Read the Diagram” (a worksheet), “How You Breathe” (a reading passage), “The Path of a Breath” (a sequencing worksheet), a vocabulary crossword and a quiz.

The sheets are in a suggested teaching order: teach the lesson, have students label the blank diagram, then work through the practice sheets and finish with the quiz. Use them all over a week or pick the ones you need. The answer keys are together at the back.

The diagram and the blank one to label are free to download on this page. The other sheets come with the pack ($7), which is also in the Elementary Science bundle (grades 3 to 6).

The parts of the respiratory system

The respiratory system brings oxygen into the body and removes carbon dioxide. Here is what happens at each labeled part of the diagram:

PartWhat it doesWhy it matters
Nasal cavityWarms, moistens and filters the air you breathe in.Air straight from outside is often cold, dry, and full of dust — exactly the wrong conditions for your delicate lungs. The nasal cavity fixes all three problems before the air travels an inch further, which is why breathing through your nose during a cold run is actually better for you than breathing through your mouth.
PharynxThe throat — a shared passage for both air and food.Sharing a passage between food and air is a risky design — food can accidentally enter the airway and cause choking. Your body handles this with careful muscle coordination, but it's why you're told not to talk with your mouth full: switching between the two pathways while swallowing is precisely when things can go wrong.
LarynxThe voice box, which also guards the entrance to the airway.A tiny flap called the epiglottis folds down over the larynx every time you swallow, blocking food from entering the airway — and when you speak, air flowing past the vocal cords inside makes them vibrate, producing sound. Without this dual-purpose guardian, every meal would be a choking hazard and you wouldn't be able to say a word.
TracheaThe windpipe that carries air down toward the lungs.C-shaped rings of cartilage keep the trachea propped open like a garden hose that can't be pinched shut — without them, the tube would collapse every time you inhaled. Doctors can check this passage with a camera, and when it gets blocked by illness or an object, emergency procedures like a tracheotomy restore airflow directly through the neck.
BronchiTwo large tubes that branch from the trachea into each lung.Splitting the airway into two ensures that each lung gets its own dedicated supply of fresh air, so damage to one side doesn't cut off the other. Conditions like bronchitis inflame the lining of these tubes, making them swell and produce mucus — which is why a chest infection can make every breath feel labored.
BronchiolesSmaller branching tubes deep inside the lungs.These tiny tubes fan out into hundreds of thousands of branches, multiplying the surface area available for gas exchange far beyond what a simple hollow organ could manage. In asthma, the walls of the bronchioles tighten and squeeze — that's the sensation of an asthma attack, the airways narrowing until airflow slows to a wheeze.
LungsThe main organs of breathing, where oxygen passes into the blood.Each lung contains roughly 300 million microscopic air sacs called alveoli, and their combined surface area is about the size of a tennis court — all folded inside your chest. That enormous surface is what allows enough oxygen to pass into your bloodstream fast enough to keep every organ in your body running at once.
DiaphragmThe dome-shaped muscle below the lungs that powers breathing.When the diaphragm contracts and flattens, it pulls air into the lungs like a pump; when it relaxes and domes back up, it pushes air out — breathing is almost entirely the work of this single muscle. A hiccup is just the diaphragm contracting in a sudden, uncontrolled spasm, snapping the vocal cords shut and making that unmistakable sound.

How to print

Choose Download PDF for a ready-to-print file that fits US Letter paper (8.5 × 11") in portrait, or Download PNG for the high-resolution image.

Frequently asked questions

What does the respiratory system do?

It takes oxygen from the air into the body and removes carbon dioxide, the waste gas the body makes.

What is the diaphragm?

The diaphragm is a large dome-shaped muscle under the lungs. When it tightens and flattens, air is pulled into the lungs; when it relaxes, air is pushed out.

What paper size should I print this on?

The diagram is sized for standard US Letter paper (8.5 × 11") in portrait orientation. Use "Download PDF" for a print-ready file that fits the page automatically.

Are there Respiratory System worksheets to go with the diagram?

Yes. The Respiratory System teaching pack, for grades 4 to 6, has 24 lesson slides and 8 printables with answer keys: the guided notes for the lesson slides, the labeled diagram and the blank one to label, then “Read the Diagram” (a worksheet), “How You Breathe” (a reading passage), “The Path of a Breath” (a sequencing worksheet), a vocabulary crossword and a quiz. The diagram and the blank one to label are free to download on this page. The other sheets come with the pack ($7), which is also in the Elementary Science bundle (grades 3 to 6).
